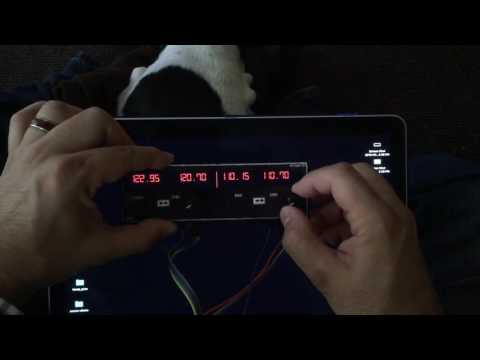

Here's a prototype of a King Radio.

I made it from 3mm PVC sheet + 1mm PVC sheet for the trim (that I painted white).  Cut out holes, then add encoders, buttons:









Posted by at

3 comments:

  1. AlfonsoOctober 24, 2016 at 11:20 PM

    Great work! I am starting to play with ardsim and I want to start a small panel (not enough space for a complete one)

    Could you please give me an indication of where I can get those buttons and encoders? The ones I own are big and I love the size of yours. Thank you!

    ReplyDelete
    Replies
    1. GabrielJanuary 7, 2017 at 7:54 PM

      Sorry for just noticing this comment.
      The button caps will be a bit tricky to find since I found them in a local electronics resale place, so I don't really have a link.
      The closest thing would be something like this:
      http://www.ebay.com/itm/20pcs-White-A14-button-cap-size-12-12-7-3-Square-/291860032186

      Also, I bought a collection of momentary switches of varying depth to use:
      https://www.amazon.com/Ocr-10Value-Tactile-Momentary-Assortment/dp/B01MRP025V

      Knobs:
      http://www.ebay.com/itm/10PCS-Black-Potentiometer-and-Encoder-Plastic-Knob-Half-Round-Shaft-Knob-For-/301920243532

      Encoders:
      http://www.ebay.com/itm/10pcs-12mm-Rotary-Encoder-Push-Button-Switch-Keyswitch-Electronic-Components-/121993737161
      Or as Modules:
      http://www.ebay.com/itm/5pcs-KY-040-Rotary-Encoder-Module-for-Arduino-AVR-PIC-/171907477425


      Delete
  2. AlfonsoJanuary 8, 2017 at 11:17 PM

    Oh. So kind in answering :D In Spain we say: "better later than never!" :D

    Have a nice 2017
